Fully automatic hydraulic press lines for manufacturing eco-friendly, fumigation-free, and high-load molded wood pallets.
High-efficiency hydraulic pressing solutions engineered for sustainable molded pallet manufacturing.
Engineered with precision hydraulics, intelligent automation, and heavy-duty structural integrity for continuous industrial performance.
A moulded pallet is exempt from ISPM 15, so it carries no IPPC mark. That exemption has to travel as documents. Every line we ship includes the five below, in English and Arabic, with your process parameters filled in from the commissioning report.

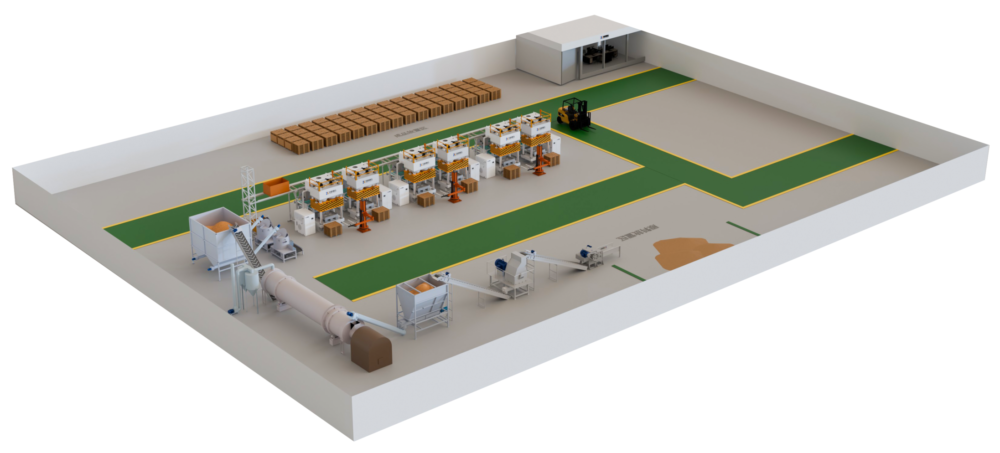

Complete end-to-end automated manufacturing process and industrial line layout.
A complete turnkey presswood pallet line integrates raw material size reduction, drying, precision glue mixing, high-pressure molding, and thermal control. Equipment setups are customized based on your raw material characteristics.
Chipping, crushing, and grinding raw wood or stalks into uniform fiber particles.
Drying particles to optimal moisture content and blending with eco-friendly adhesives.
High-temperature thermal pressing, cooling, edge trimming, and automated stacking.
Logs and wood waste are fed into a heavy-duty wood chipper to produce consistent chips.
Wood chips are further ground into fine wood fibers using a hammer mill.
Particles are dried in a rotary drum dryer to reach targeted low moisture content.
Dried fibers are blended with high-performance eco-adhesives in an automatic mixer.

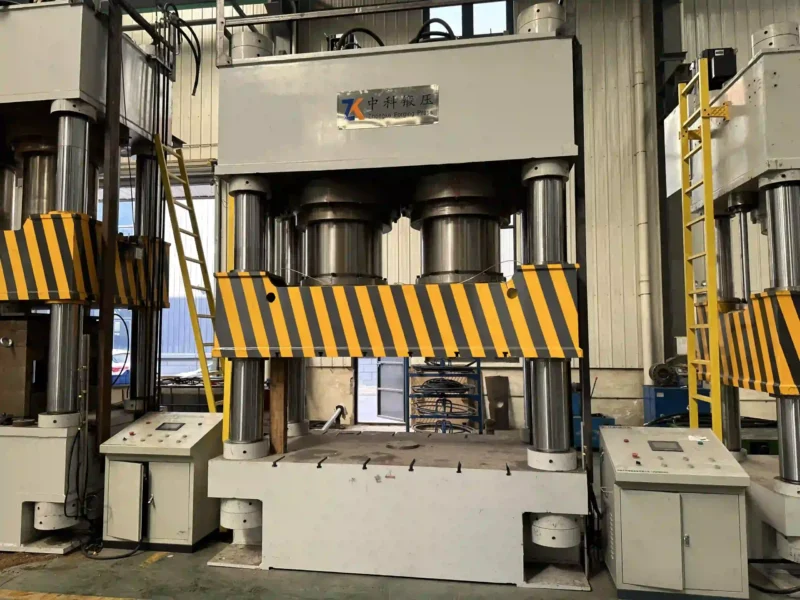

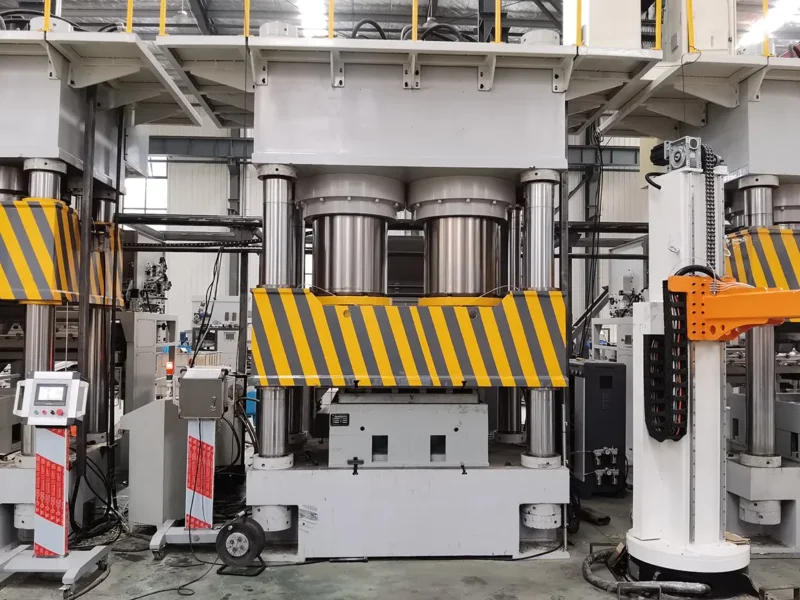

Dosed mixture is molded under high temperature (180–220°C) and pressure (>1,000 tons).
Hot molded pallets cool down, curing the resin completely to lock in structural stability.
Pallet edges are automatically trimmed and surfaces smoothed to export dimensions.
Every pallet batch undergoes rigorous load-bearing and water resistance checks.
Finished nestable pallets are neatly stacked and wrapped to save freight space.
Transform agricultural & industrial waste into high-density eco-friendly pallets
Have unique organic waste? Click to request a custom molding test →
Explore different types of molded presswood pallets designed for export packaging, warehouse storage, automated logistics systems, and heavy-duty industrial applications.

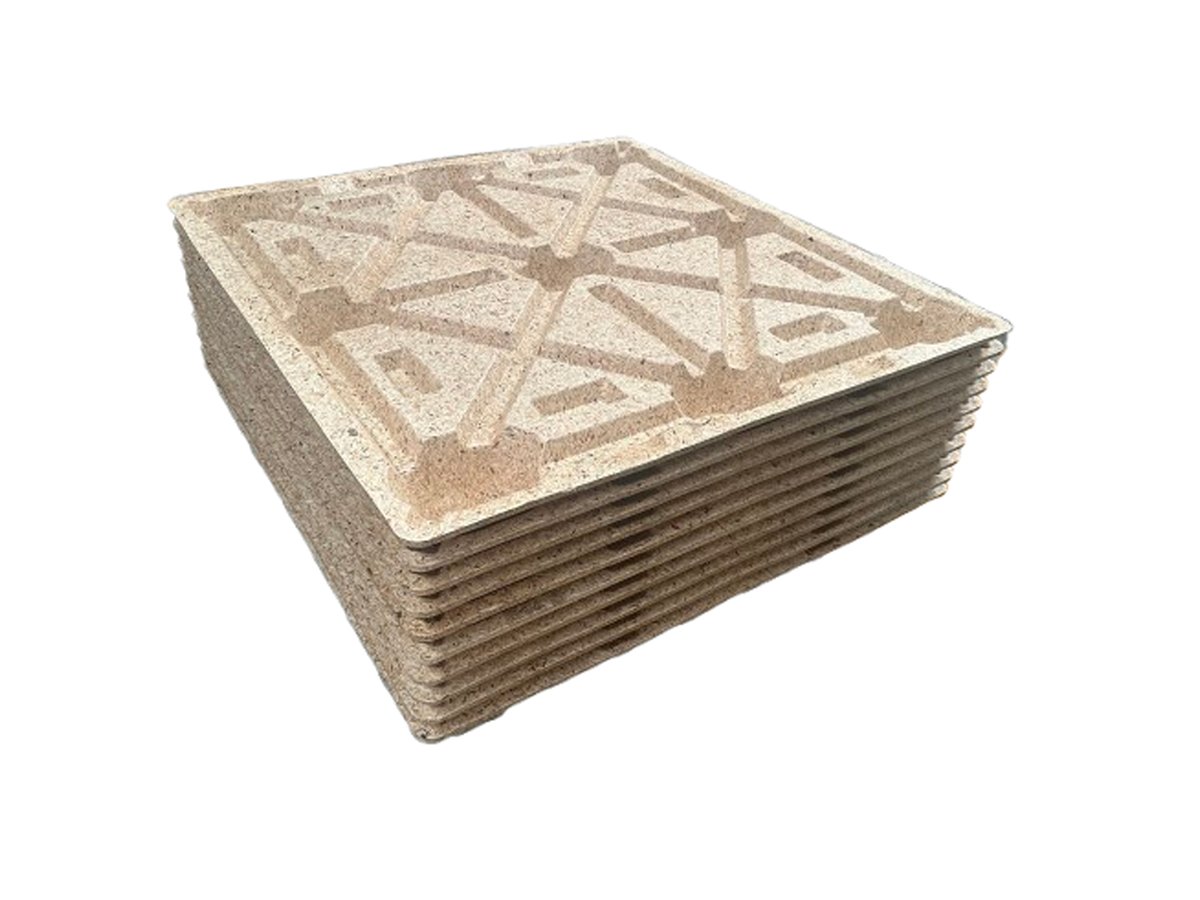

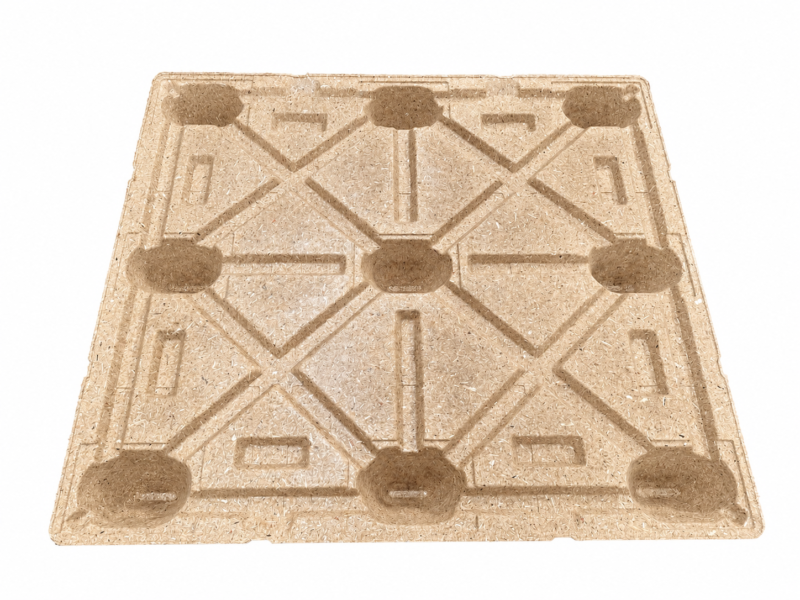

Nestable molded presswood pallet designed to reduce warehouse and transportation costs by saving up to 66% storage space.
View Details →
Designed with reinforced support legs for high-load warehouse racking systems while maintaining nesting advantages.
View Details →
Double-deck molded pallet with outstanding structural strength for high-capacity storage and heavy cargo handling.
View Details →

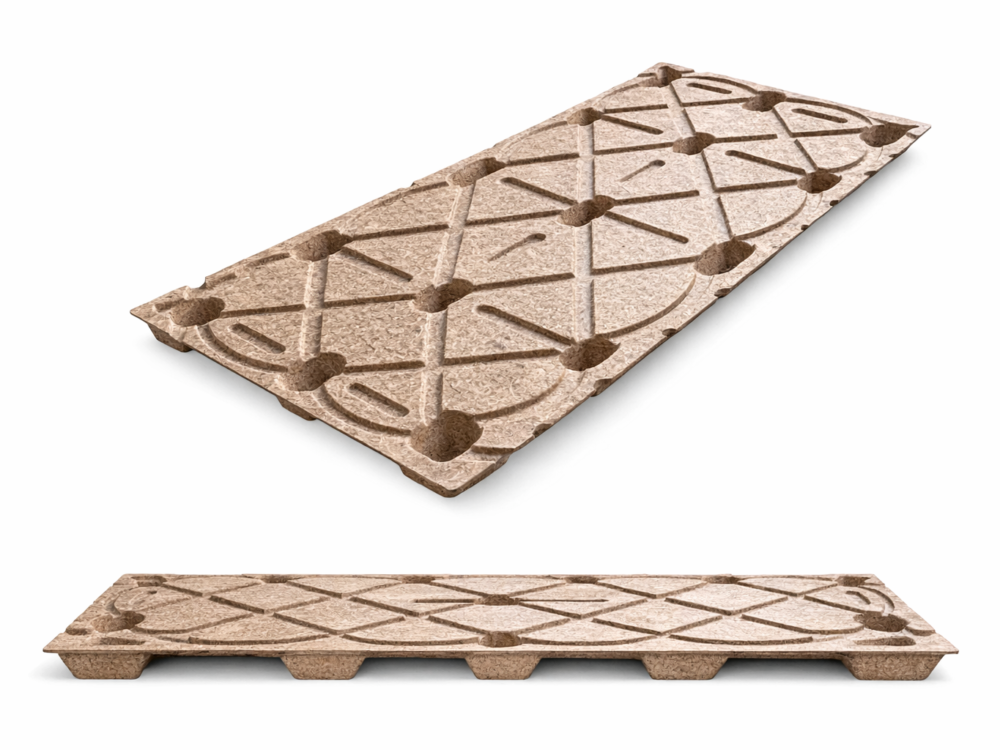

Custom-engineered molded presswood pallet specially developed for photovoltaic modules, solar panels and oversized products.
View Details →
Features a smooth continuous deck that protects cartons, bags and delicate products from indentation during transit.
View Details →
Designed with a reinforced bottom structure for automated roller conveyor lines and intelligent warehouse logistics.
View Details →
The most common international shipping sizes are 1200x1000mm (ISO standard) and 1200x800mm (Euro Pallet standard). Both fit seamlessly into shipping containers without wasting space.
Standard molded pallets support a dynamic load of 1,000 to 1,500 kg and a static load ranging from 6,000 to 8,000 kg.
No. Molded presswood pallets are processed under high temperature and extreme hydraulic pressure. They strictly comply with ISPM 15 regulations and do not require fumigation.
The press at the end can be identical. The front end decides which fiber you can legally run, and post-consumer fiber is the cleanest EUDR story available. This is what changes before the mill.
| Front-end item | Sawdust-dedicated line | Waste / demolition-ready line |
|---|---|---|
| Crusher duty | Light duty, clean chip and dust feed | Heavy-duty rotor, thicker jaws, for boards with nails and dirt |
| Metal removal | Optional | Magnetic separator plus non-ferrous detection ahead of the mill |
| Screening | Single-deck, stable feed size | Multi-deck, removes overs and fines from variable feed |
| Dryer sizing basis | Named moisture range (8–15%) | Evaporation load, sized on worst-case wet demolition wood |
| EUDR fiber status | In scope (HS 4401 by-product) | Out of scope, if the batch is genuinely end-of-life and evidenced |
| Paperwork burden | Plot-level origin back to the forest | Waste-status evidence: source stream, photos, transfer records |
| Indicative add-on | Base configuration | Roughly 10–18% on the preparation line, before the press |
A moulded pallet has no IPPC mark because nothing was treated. Put the legal reason into the tool cavity instead, so every pallet in the container says it without a sheet of paper.
Why buyers ask: Oman has required pallets on all sea and air cargo since 15 September 2026, and a pallet without a stamp invites a second look. The engraving answers the question at the gate, before anyone opens a folder.
| Container Type | Stack Description | Quantity | Total Weight |
|---|---|---|---|
| 1. Size 1200x800x140mm Nine Feet Presswood Pallet | |||
| 20 ft Container | 12 stacks x 55 pcs | 660 pcs | 10 tons |
| 40 ft Container | 23 stacks x 64 pcs | 1472 pcs | 22.08 tons |
| 45 ft Container | 32 stacks x 64 pcs | 2048 pcs | 30.75 tons |
| 2. Size 1200x1000x140mm Nine Feet Presswood Pallet | |||
| 20 ft Container | 8 stacks x 55 pcs | 450 pcs | 7.65 tons |
| 40 ft OT Container | 18 stacks x 64 pcs | 1152 pcs | 19.58 tons |
| 45 ft Container | 24 stacks x 64 pcs | 1536 pcs | 26.11 tons |
| 3. Size 1100x1100x140mm Nine Feet Presswood Pallet | |||
| 20 ft Container | 10 stacks x 55 pcs | 550 pcs | - |
| 40 ft OT Container | 20 stacks x 64 pcs | 1100 pcs | - |
ISPM 15 exemption and EUDR exemption are two different tests. EUDR asks whether your fiber entered the economy as waste or as a by-product. The Commission's own guidance, C/2024/6789, has already answered the sawdust question in writing.
Our high-tonnage hydraulic molding technology is capable of manufacturing far more than presswood pallets. From industrial packaging and cable reel components to furniture panels and custom molded products.

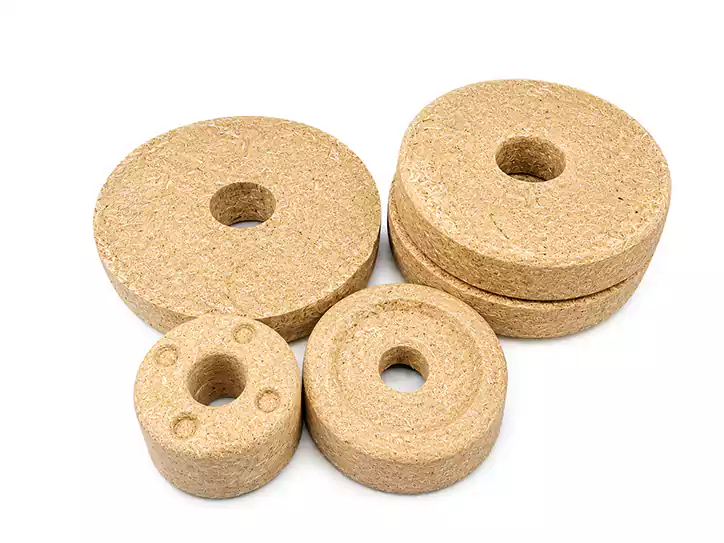

Engineered for paper mills, film manufacturers and steel coil producers to protect roll cores from crushing.
Explore Product →

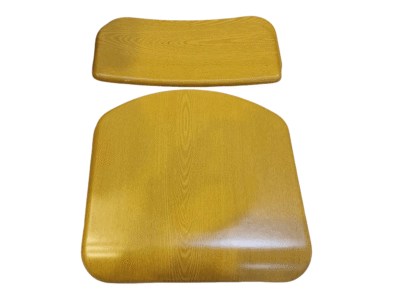

Produced by high-pressure compression molding, providing high dimensional stability for furniture manufacturers.
Explore Product →
Lightweight yet high-strength drum flanges used for power cable, optical fiber and telecom cable packaging.
Explore Product →Whether you need industrial packaging, furniture components, or customized molded wood products, our team can deliver a complete turnkey manufacturing solution.
